Factory OEM/ODM 10/100/mbps 6 Fiber Port SC 2 rj-45 Port Switch 4*10/100Mbps POE Port,2*10/100Mbps Uplink Port

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: OPTFOCUS
प्रमाणन: CE
मॉडल संख्या: ओएफएस-पीई-डीटी6-एस
न्यूनतम आदेश मात्रा: 1
मूल्य: USD13 per Unit
पैकेजिंग विवरण: बॉक्स / कार्टन
प्रसव के समय: 7 दिन
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 70000 प्रति माह
प्रोडक्ट का नाम: ईथरनेट स्विच दूरी: 20 किमी
प्रतीक चिन्ह: अनुकूलित योजक: एससी, एलसी
MOQ: 1 मॉडल संख्या: ओएफएस-पीई-डीटी6-एस
उत्पत्ति के प्लेस: चीन वारंटी समय: 1 साल
ब्रांड: ऑप्टफोकस

Factory OEM/ODM 10/100/mbps 6 Fiber Port SC 2 rj-45 Port Switch 4*10/100Mbps POE Port,2*10/100Mbps Uplink Port
Welcome to contact our sales team and they will offer you a professional introduction about our products!

Product Overview

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

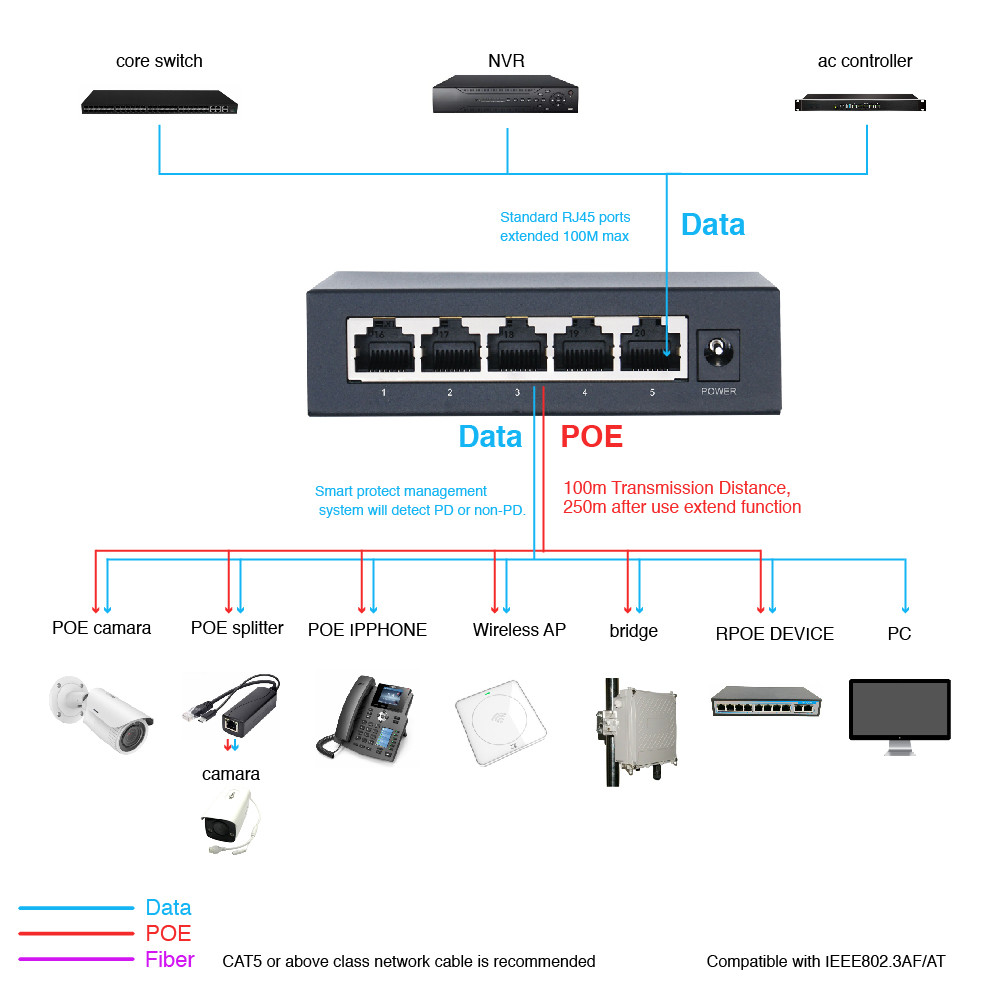

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.



Connector 4*10/100mbps POE port,2*10/100mbps uplink port,Small
Power Supply Type Build in, 1/2+,3/6-
PoE Output Power 15.4W/30W
Data Pin 1/2+,3/6-
Network Medium Cat5 (UTP) or more
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

PoE power Wiring: Data & power provided over pairs 1/2 and 3/6
Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size 1K MAC address entry
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 1 .2G
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Input 110V-240V

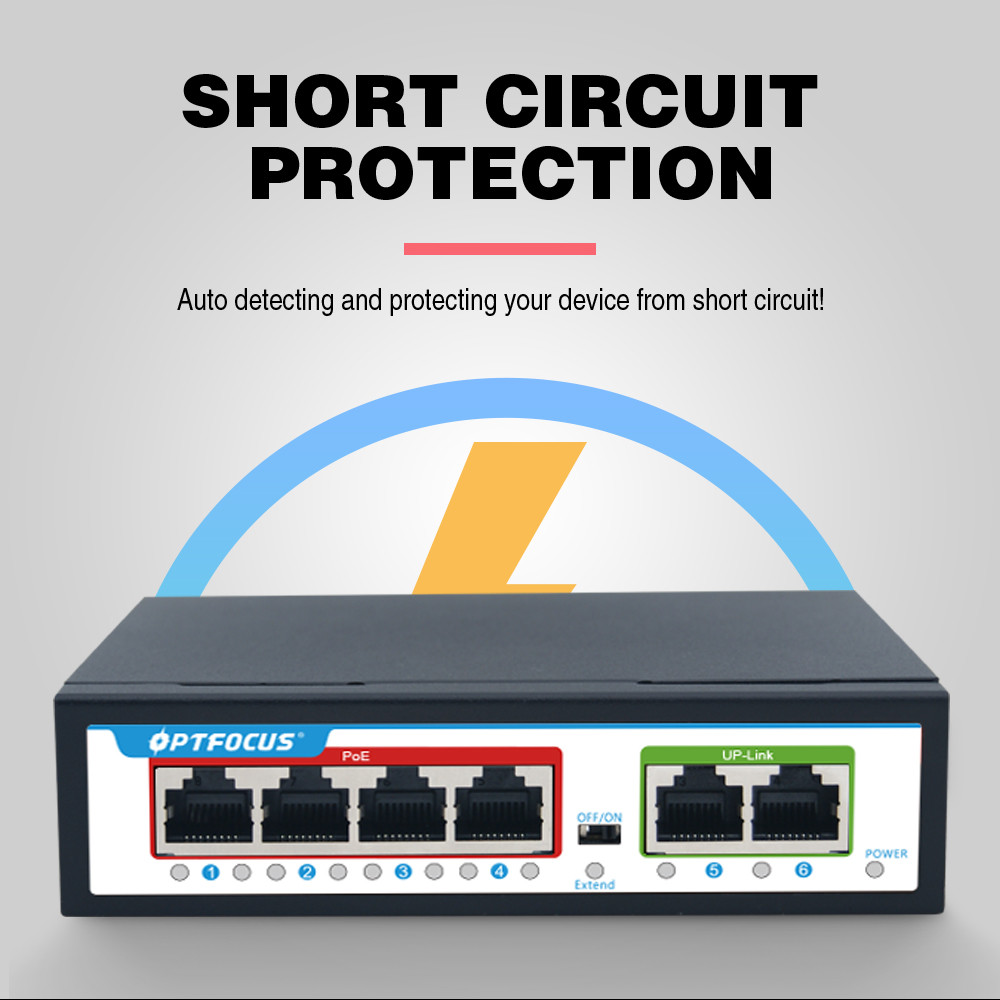

Overload current protection Present
Casing Metal
Installation Desktop/Rack mounting
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
ISO Manufactured in ISO9001 facility
Safety CE
Dimensions 130*121*36mm(L*W*H)
Weight G.W:0.63Kg N.W:0.45Kg





Factory OEM/ODM 10/100/mbps 6 Fiber Port SC 2 rj-45 Port Switch 4*10/100Mbps POE Port,2*10/100Mbps Uplink Port 0

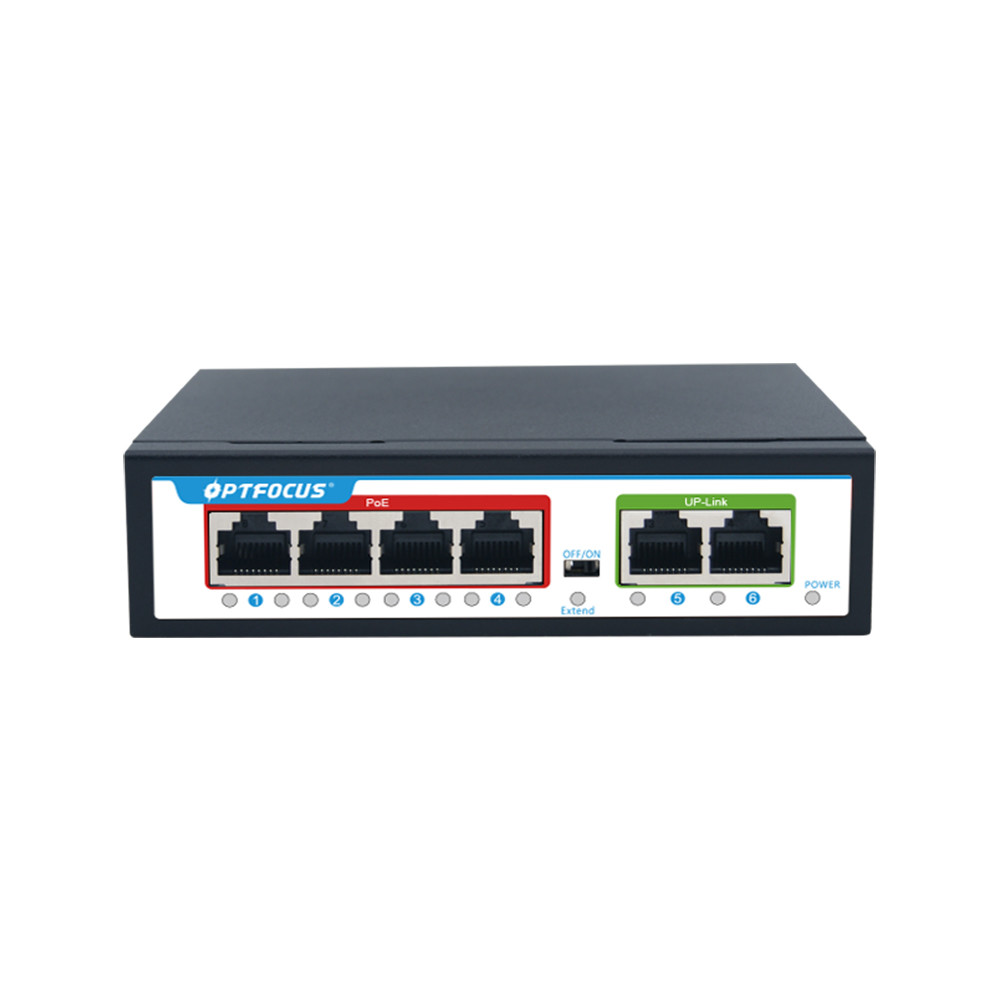

OFS-PE-DT6-S 4*10/100mbps POE port,2*10/100mbps uplink port,Built-in power supply,Small





Factory OEM/ODM 10/100/mbps 6 Fiber Port SC 2 rj-45 Port Switch 4*10/100Mbps POE Port,2*10/100Mbps Uplink Port 1

Packaging & Shipping

 23



Company Information



Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.



Advantage of our company :

1 National High-tech enterprise certification;

2 Fiber Optical Innovative &production team Over 10 years;

3 Fiber optical active and passive components production Workshop;

4 Strict quality management system;

5 Professional One stop supply & service;

6 OEM&ODM available;

7 Reliable and Timely customer services;



company profile

FAQ:

1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.what can you buy from us?
Switch,GPON ONU,EPON ONU



4. How many days can shipment after ordered?

According to the quantity you order, we will reply you the shipment day


5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
