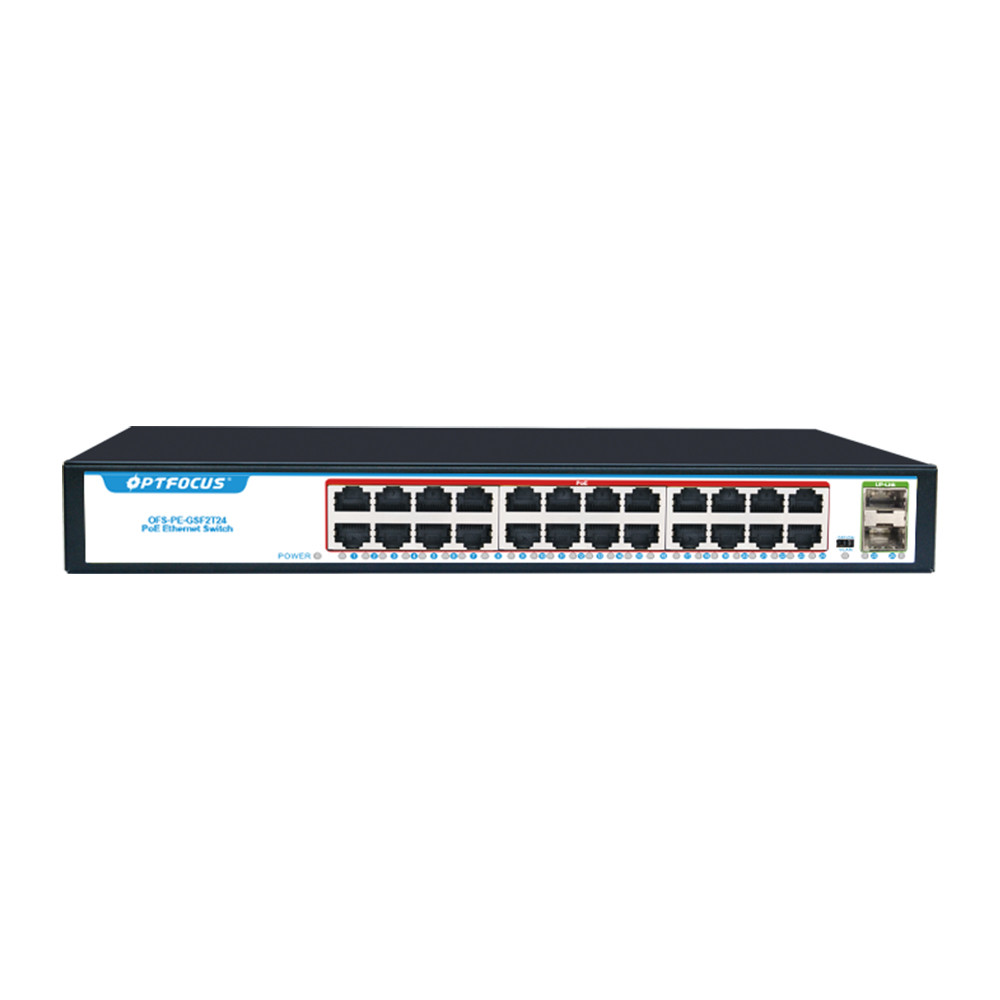

Factory OEM/ODM Poe Switch Poe Management 24 24*10/100/1000mbps POE Port,2*1000mbps SFP UP-Link Port

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: OPTFOCUS
प्रमाणन: CE
मॉडल संख्या: 24 पोर्ट पो स्विच
न्यूनतम आदेश मात्रा: 1
मूल्य: USD13 per Unit
पैकेजिंग विवरण: बॉक्स / कार्टन
प्रसव के समय: 7 दिन
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 70000 प्रति माह
प्रोडक्ट का नाम: पीओई स्विच दूरी: 20 किमी
प्रतीक चिन्ह: अनुकूलित योजक: एससी, एलसी
MOQ: 1 मॉडल संख्या: ओएफएस-पीई-जीएसएफ2टी24
उत्पत्ति के प्लेस: चीन वारंटी समय: 1 साल
ब्रांड: ऑप्टफोकस

Factory OEM/ODM Poe Switch Poe Management 24 24*10/100/1000mbps POE Port,2*1000mbps SFP UP-Link Port
Welcome to contact our sales team and they will offer you a professional introduction about our products!

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

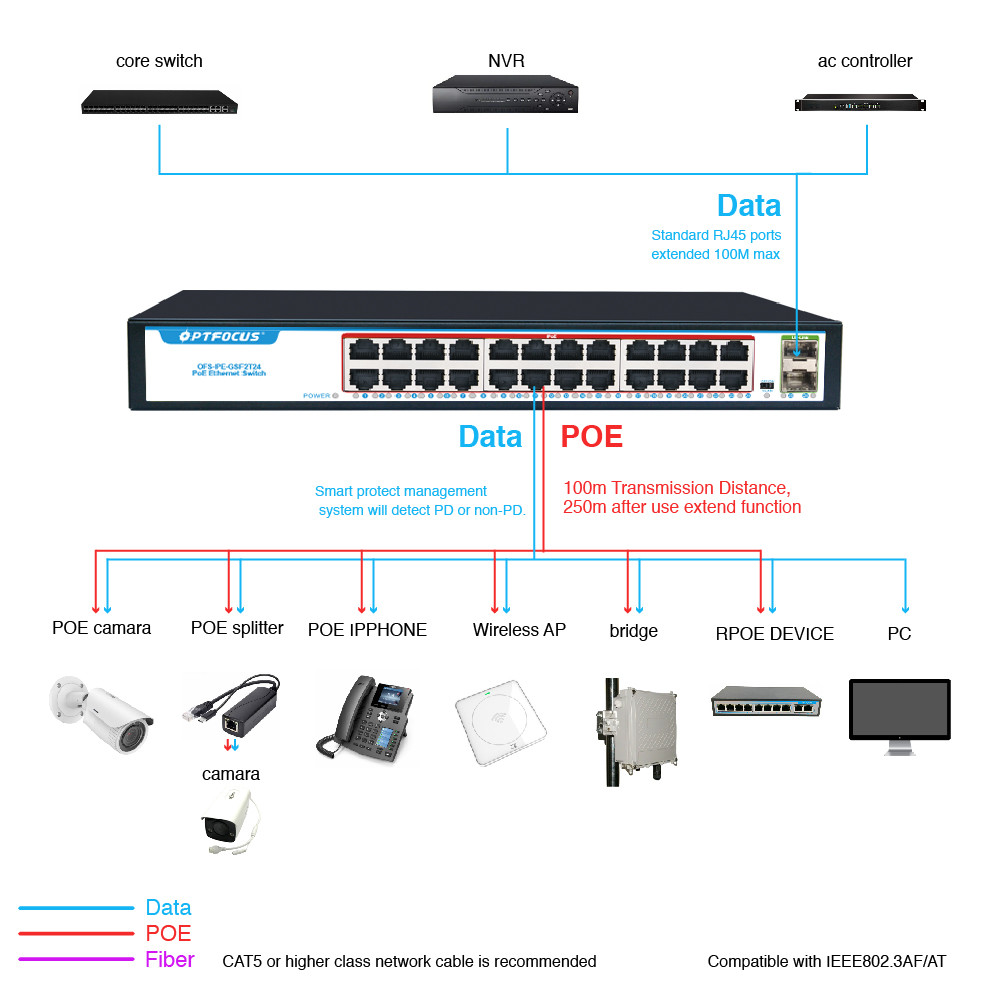

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.


Connector 24*10/100/1000mbps POE port,2*1000mpbs SFP Uplink Port
Power Supply Type Build In, 1/2+,3/6-
PoE Output Power 15.4W/30W
DATA PIN 1/2+,3/6- 4/5+7/8-
Network Medium Cat5 (UTP) or more
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

PoE power Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)
Processing types


Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size 8K MAC address
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 52Gbps Full duplex
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Input 110V-240V
Overload current protection Present
Casing Metal
Installation DESKTOP/Rack mounting with Bracket
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
ISO Manufactured in ISO9001 facility
Safety CE
Dimensions 312*185*46mm (L*W*H)
Weight N.W:2Kg G.W:2.3Kg
OFS-PE-GSF2T24 24*10/100/1000mbps POE port,2*1000mpbs SFP Uplink Port,Built-in power supply
